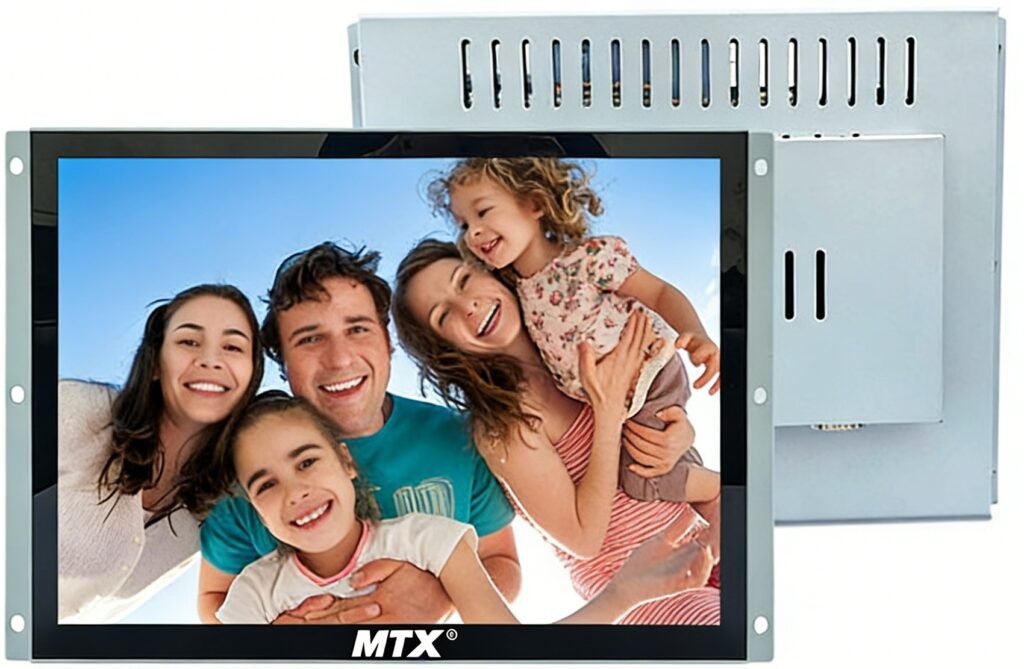

OPEN FRAME TOUCHSCREEN MONITOR
- Open Frame LCD Monitor with Touch Screen (Optional)
- Comes with metal bezel (Optional)
- Compatible with variety game sources like POG / WLM etc.
- CGA/VGA/HDMI (Optional)
Model | XS-G150 |
Size | 15 inch |
Resolution | 1024(RGB)*768(XGA) |
Display Size | 304.128×228.096 mm (H×V) |
Brightness | 300cd/㎡ |
Viewing angel | 85°/85°/85°/85° |
Colors | 16.2M |
Contrast ratio | 800:1 |
Interface | DC/VGA/RS232 (HDMI optional) |
Menu language | English/Multiple |
Control mode | Menu Button |
Input voltage | AC 100-240V 50/60Hz |
Maximum Rated Temperature | Storage:-25 ~ 65°C; Working:0 ~ 60°C |
Dimension | 363×255×56 mm(H×V×D) |
Touch | Optional (Infrared) |
- Open Frame LCD Monitor with Touch Screen (Optional)
- Comes with metal bezel (Optional)
- Compatible with variety game sources like POG / WLM etc.
- CGA/VGA/HDMI (Optional)
Model | XS-G170 |
Size | 17 inch |
Resolution | 1024(RGB)*768(XGA) |
Display Size | 304.128×228.096 mm (H×V) |
Brightness | 350cd/㎡ |
Viewing angel | 85°/85°/80°/80° |
Colors | 16.7M |
Contrast ratio | 1000:1 |
Interface | DC/VGA/RS232 (HDMI optional) |
Menu language | English/Multiple |
Control mode | Menu Button |
Input voltage | DC12V/3A |
Maximum Rated Temperature | Storage:-25 ~ 65°C; Working:0 ~ 60°C |
Dimension | 363×255×56 mm(H×V×D) |
Touch | Optional (Infrared) |
- Open Frame LCD Monitor with Touch Screen (Optional)
- Comes with metal bezel (Optional)
- Compatible with variety game sources like POG / WLM etc.
- CGA/VGA/HDMI (Optional)
Model | XS-G190 |
Size | 17 inch |
Resolution | 1024(RGB)*768(XGA) |
Display Size | 304.128×228.096 mm (H×V) |
Brightness | 350cd/㎡ |
Viewing angel | 85°/85°/80°/80° |
Colors | 16.7M |
Contrast ratio | 1000:1 |
Interface | DC/VGA/RS232 (HDMI optional) |
Menu language | English/Multiple |
Control mode | Menu Button |
Input voltage | DC12V/3A |
Maximum Rated Temperature | Storage:-25 ~ 65°C; Working:0 ~ 60°C |
Dimension | 363×255×56 mm(H×V×D) |
Touch | Optional (Infrared) |
- Open Frame LCD Monitor with Touch Screen (Optional)
- Comes with metal bezel (Optional)
- Compatible with variety game sources like POG / WLM etc.
- CGA/VGA/HDMI (Optional)
Model | XS-G215 |
Size | 21.5 inch |
Resolution | 1920(RGB)*1080(XGA) |
Display Size | 476.64×268.11 mm (H×V) |
Brightness | 350cd/㎡ |
Viewing angel | 85°/85°/80°/80° |
Colors | 16.7M |
Contrast ratio | 1000:1 |
Interface | DC/VGA/RS232 (HDMI optional) |
Menu language | English/Multiple |
Control mode | Menu Button |
Input voltage | DC12V/3A |
Maximum Rated Temperature | Storage:-25 ~ 65°C; Working:0 ~ 60°C |
Dimension | 363×255×56 mm(H×V×D) |
Touch | Optional (Infrared) |
